Aluminum Flatbed

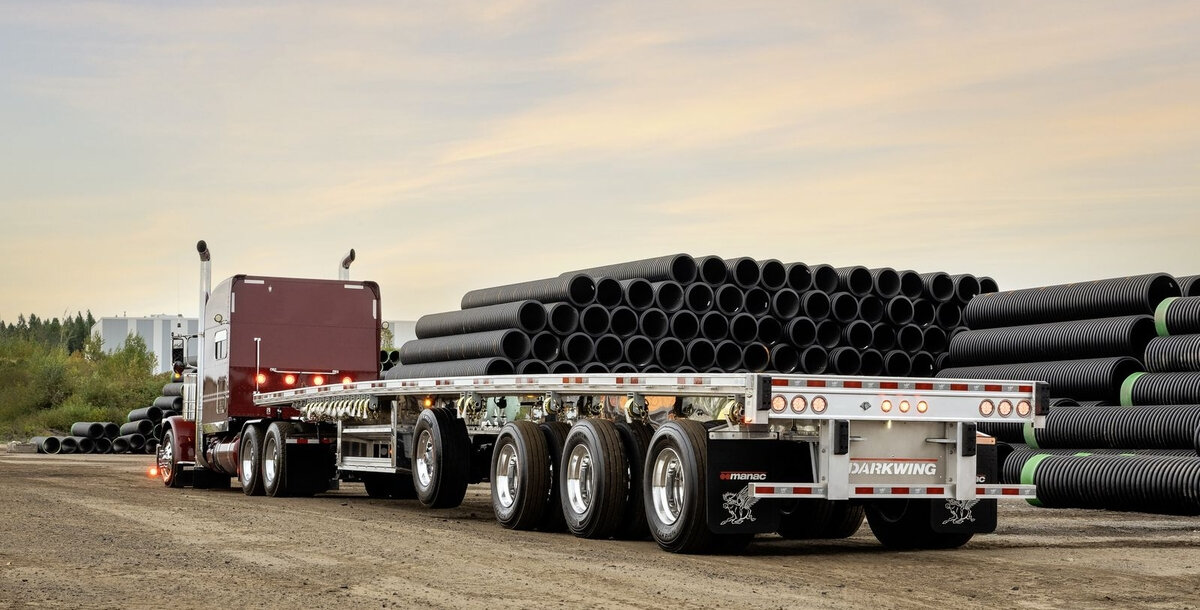

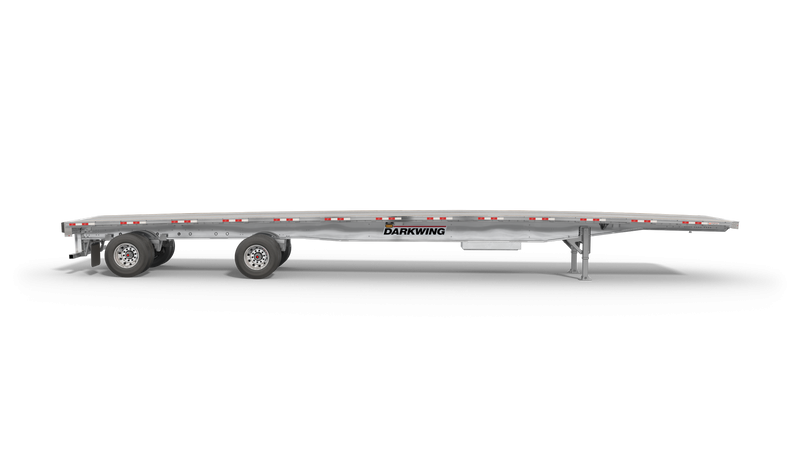

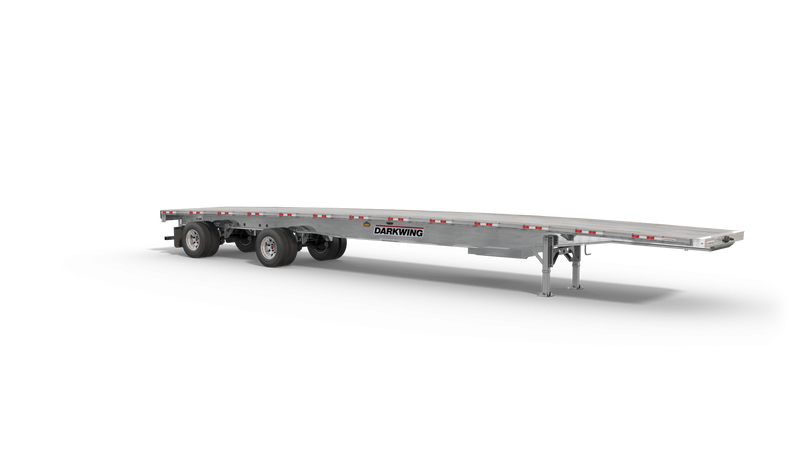

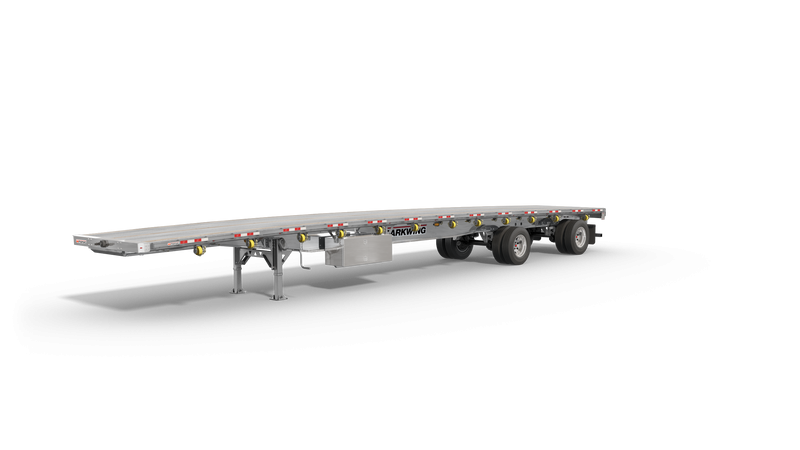

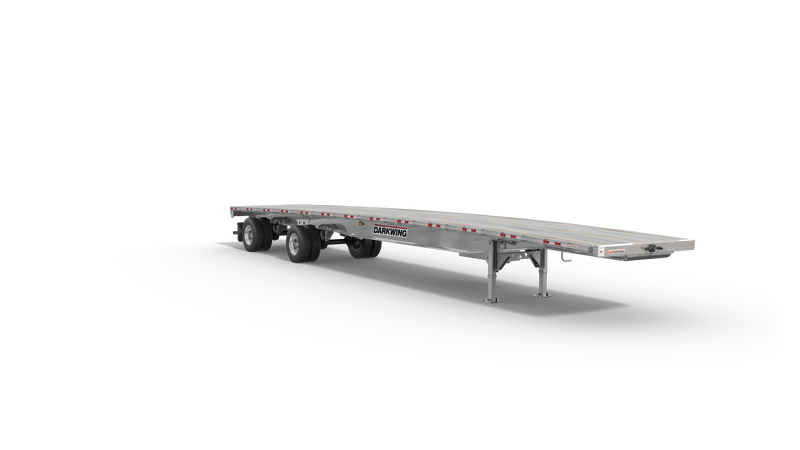

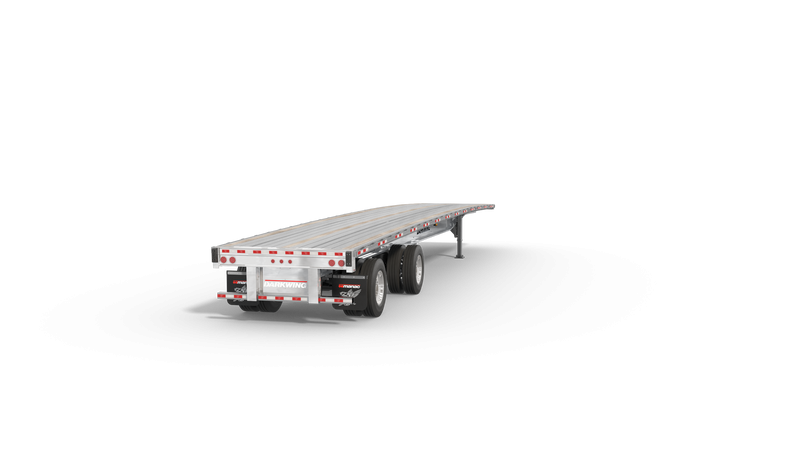

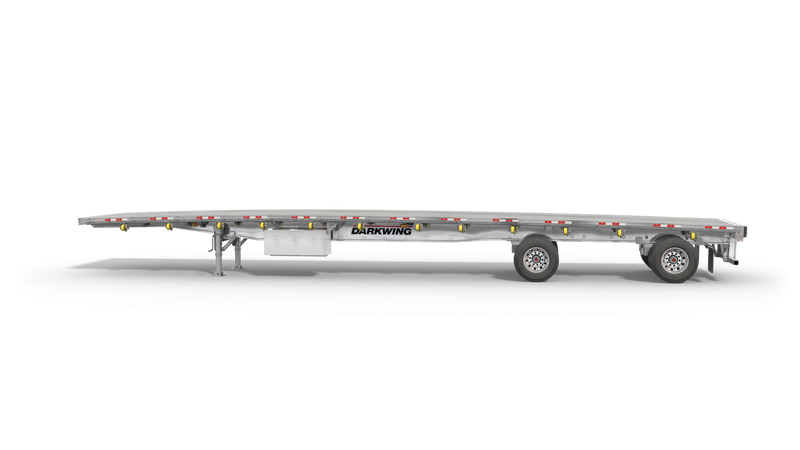

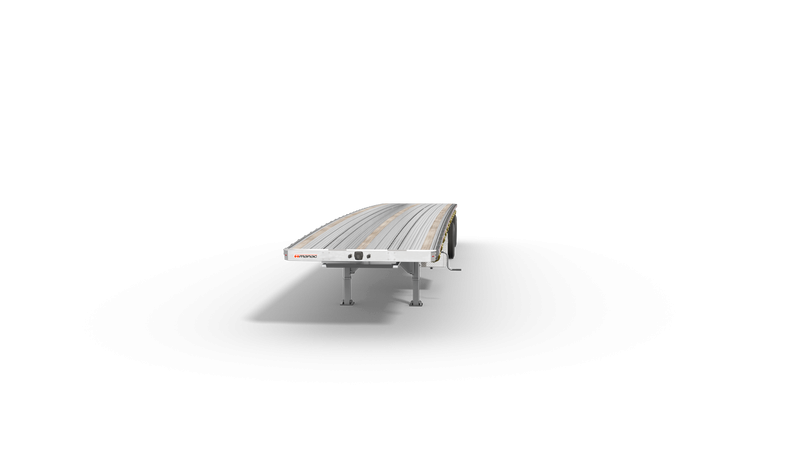

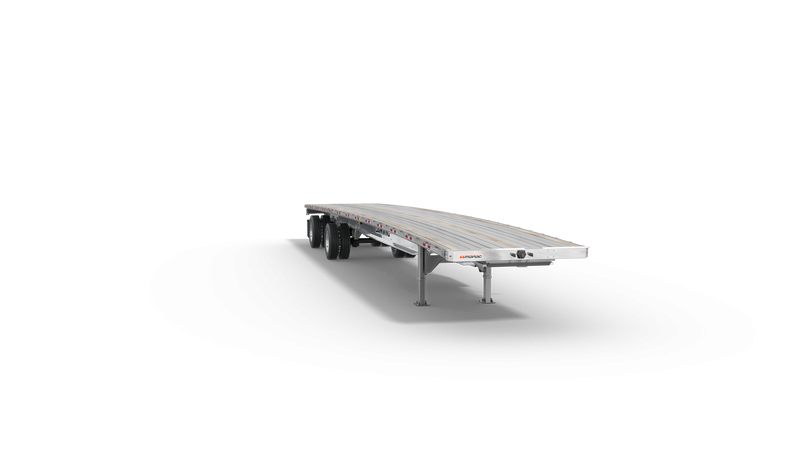

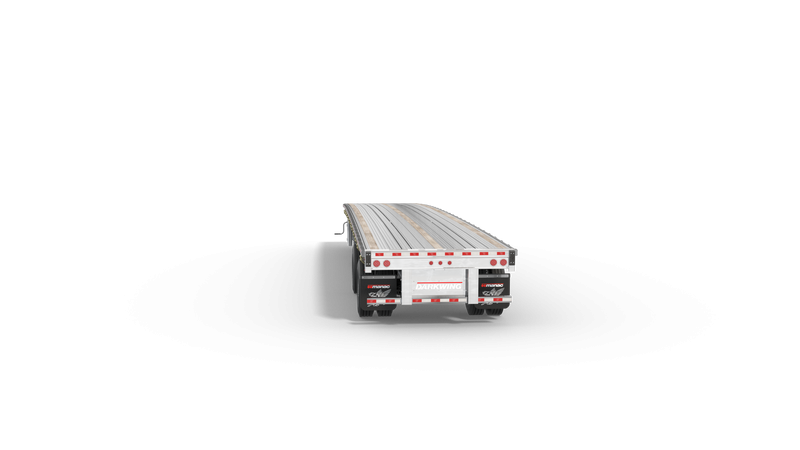

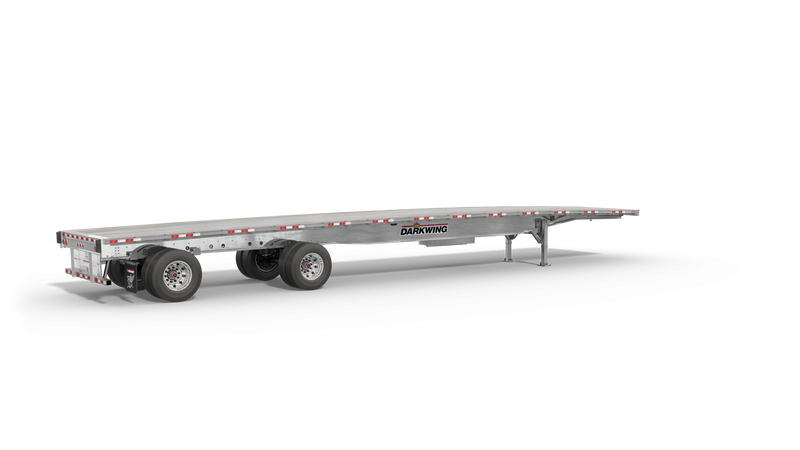

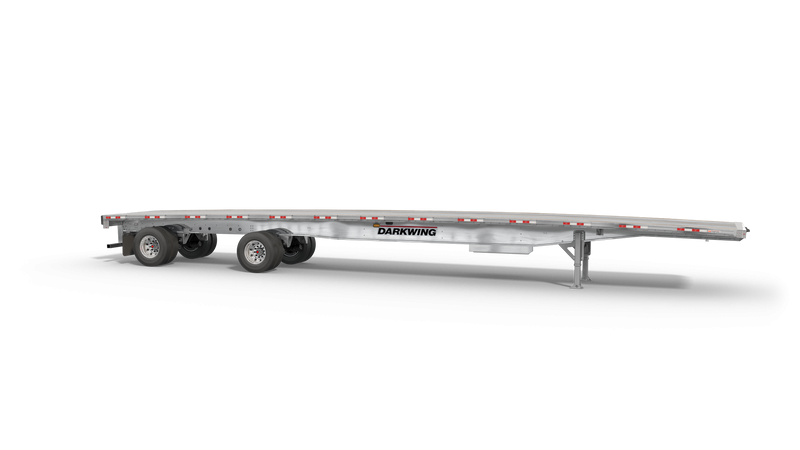

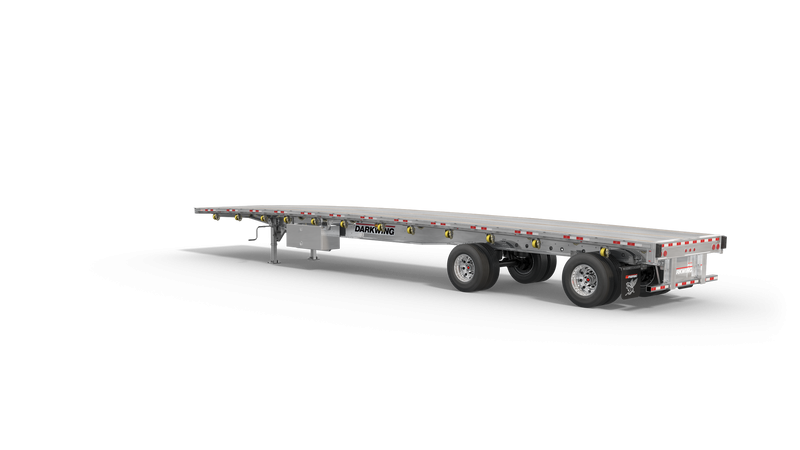

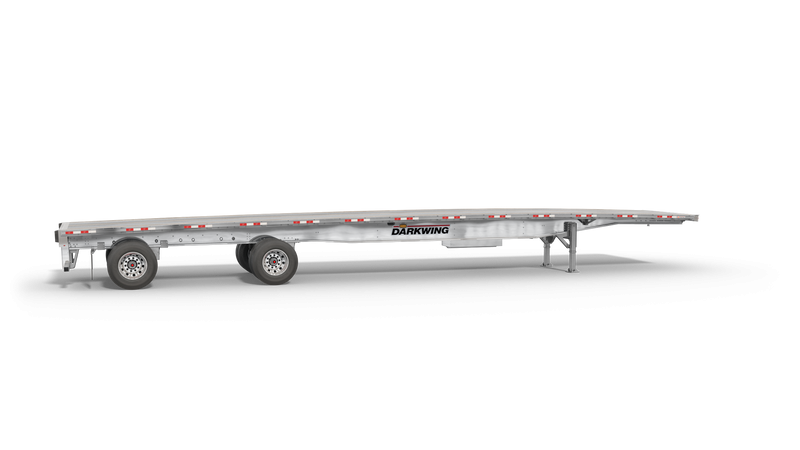

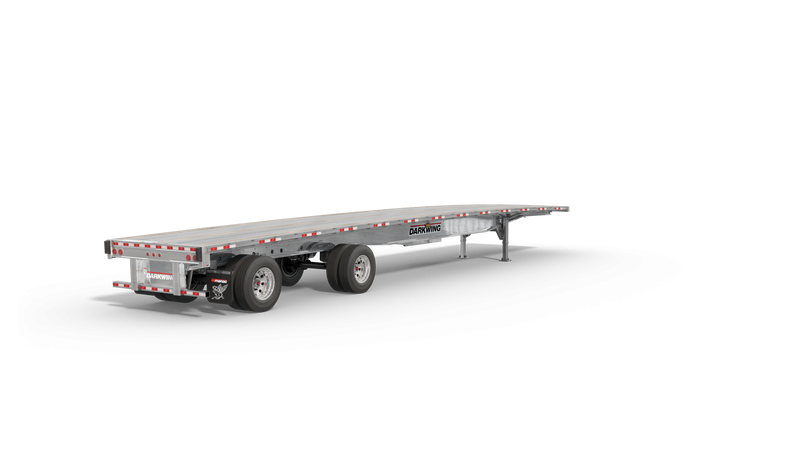

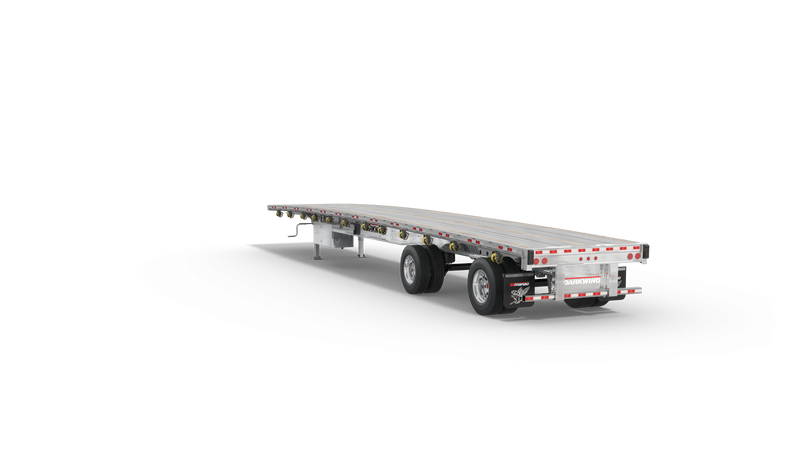

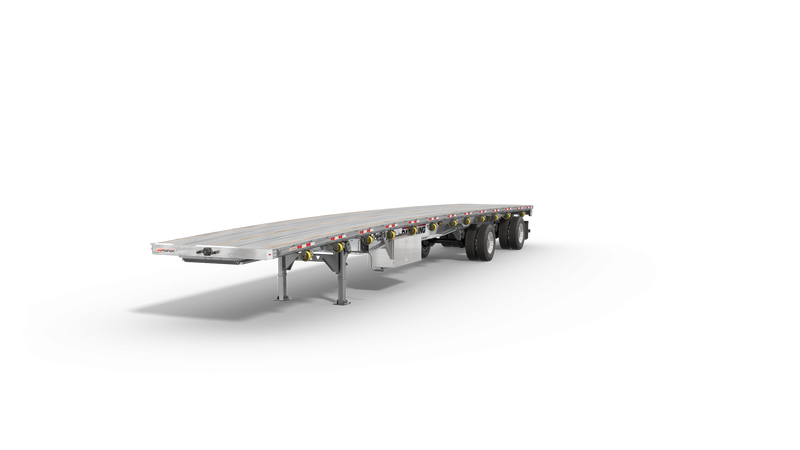

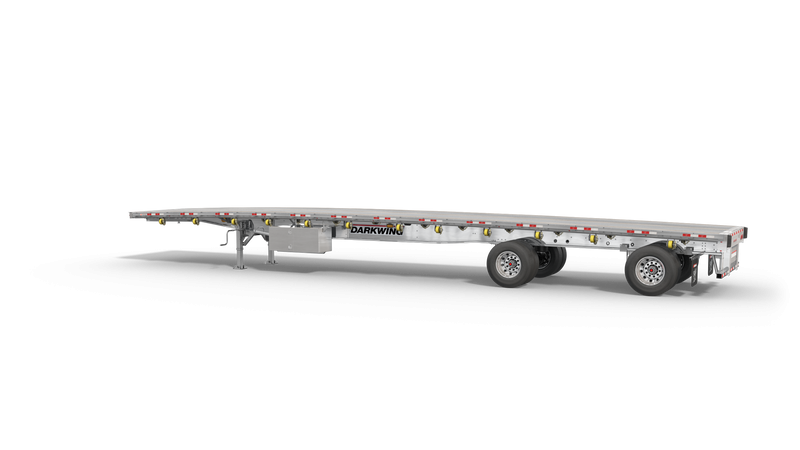

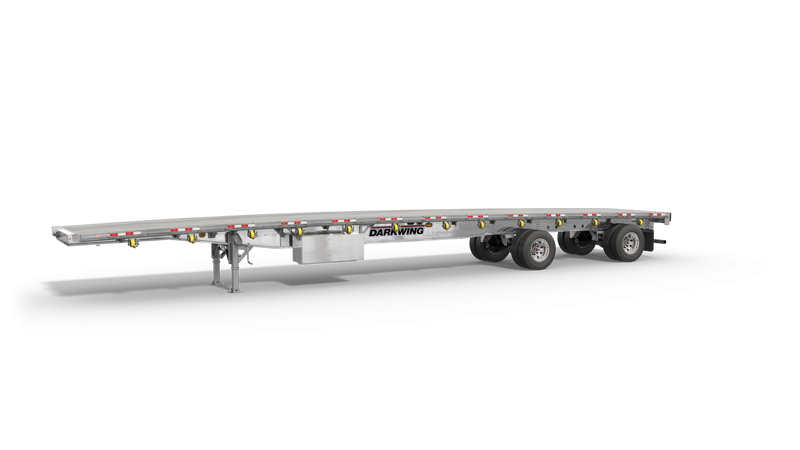

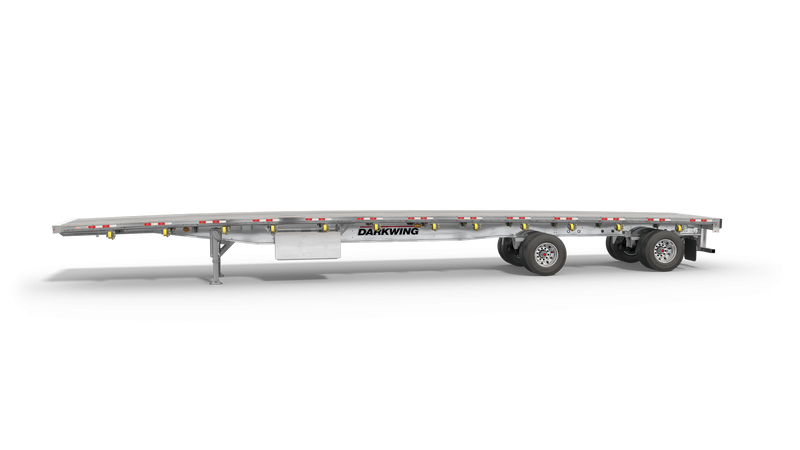

For a quality aluminum flatbed that drives value, look no further than the DARKWING
This lightweight but sturdy flatbed trailer is designed to handle larger, heavier carrying capacities. Made entirely of aluminum, this flatbed has a high resistance to rust and corrosion, making it easy to maintain. A great choice for maximizing your load, the DARKWING offers the best value at the right price.
The DARKWING flatbed trailer product line includes:
- Straight flatbed trailers
- Drop deck trailers
All Manac DARKWING flatbeds are available in various capacities and can be configured based on your load and application requirements including:
- Standard Duty
- Medium Duty
- Heavy Duty
Standard features
7
Years
Warranty
Other benefits
- Galvanized coupler plate
- Galvanized landing gear structure
- Galvanized suspension hangers
- Aluminum plate with "DARKWING" logo bolted between bumper uprights
- Integrated cargo rails at side rails and flanges
- Pre-cambered beams at 42" c/c
- Extruded aluminum side rails with solid rub rail spacers and tubular side pockets rated to 5,500 lb.
- Huck fasteners instead of bolts in key areas
- Heavy duty 1 1/4" aluminum extruded floor
Optional features
Coil Packages
Coil packages for single and multiple coils

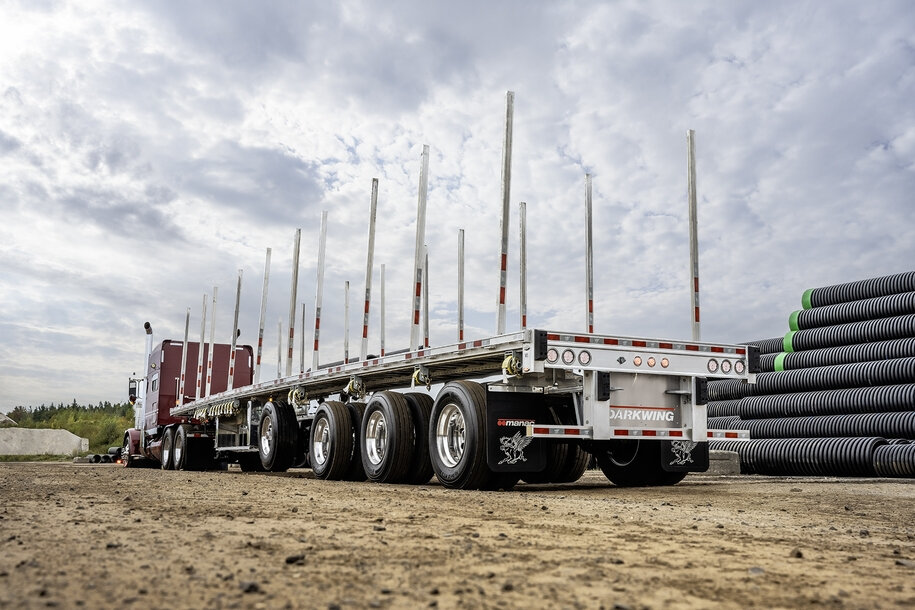

Log Transport Options
Bunks for lumber with posts
Toolboxes
Variety of sizes and finishes
Specifications
Dimensions
Length
28'-53'
Width
96"-102"
Body Structure
Coupler Plate
1/4" galvanized 80,000 psi steel bolted structure
Web
1/4" polished aluminum full length
Flanges
Aluminum extrusion (6061-T6)
Crossmembers
4" extruded aluminum I-beams 16" c/c
Floor
High strength 1 1/4" high inverted "T" structural aluminum extrusion with 3 apitong nailers
Side Rail
Aluminum extrusion 5 13/16" high with integrated cargo rail
Pockets
Aluminum tube, 4" high on 24" centers with certified 5,500 lbs working load limit
Rub Rails
Aluminum extrusion 3/8" x 2 3/4" with standard double pipe spools
Rear End
Aluminum extrusion, 6 1/2" high, 16,000 lbs. lift truck HD capacity with 3 integrated boxes at rear.
Bumper
Bolt-on aluminum, Transport Canada and DOT certified
Electrical
Main System
Grote Ultra Blue LED sealed lights & wiring harness system, meets Transport Canada and DOT requirements
Landing Gear
Landing Gear
Holland with galvanized reinforced support structure
Suspension
Suspension
Hendrickson Intraax air ride
Air System
Gladhands
Fixed at front
Accessories & Finishing
Decals
Conspicuity tape complies with DOT and CMVSS standards
