Reliable Standard Dry Van
Durable Ultraplate Van
Standard features
Other benefits
- Top rail with interchageable corner caps
- Aluminum front rail
- Galvanized bolted landing gear structure
- Bolt-on galvanized bumper
- Outboard-mounted roof rivets
- Hardwood floor with 8' WAXIN protection at rear
Optional features
Suspension
Disc brakes, extended wheel end options, aluminum rims
Load Securement
Multiple configurations including logistic post, e-track, decking systems, floor tie downs
XD Bottom Rail
21 1/2" high heavy duty bottom rail with integrated 16" corrugated scuff plate
Specifications
Dimensions
Length
28'-60'
Width
96"-102"
King Pin
18"-62"
Sub Structure
Coupler Plate
High strength 1/4", 5/16" or 3/8"
Floor
Prolam 1 3/8" laminated hardwood with black preservative undercoating and Waxin water resistance treatment on last 8' of interior floor, 20,000 lbs floor rating
Front Wall
Front Wall
6 Post Design, Pre-painted aluminum panel, aluminum cast radius with interchangeable corner caps
Side wall
Side Panels
Composite polyethelyne core and galvanized inner and outer panels 5/16" thick
Posts
24" and 48" c/c with integrated logistic slots at 4" c/c
Interior Liner
Galvanized steel prepainted white
Rear End
Door Frame
Galvanized (G164)
Doors
Composite swing, roll-up
Bumper
Galvanized (G164), bolted uprights CMVSS & DOT approved and IIHS Toughguard award design
Roof
Roof
Aluminum, Translucent
Electrical
Main System
Grote Ultra Blue LED sealed lights & wiring harness system meets Transport Canada and DOT requirements
Landing Gear
Landing Gear
Holland 2 Speed
Structure
Galvanized formed steel over 6 crossmembers
Suspension
Suspension
Hendrickson Intraax air ride
Air System
Gladhands
Fixed at front
Accessories & Finishing
Decals
Conspicuity tape complies with DOT and CMVSS standards

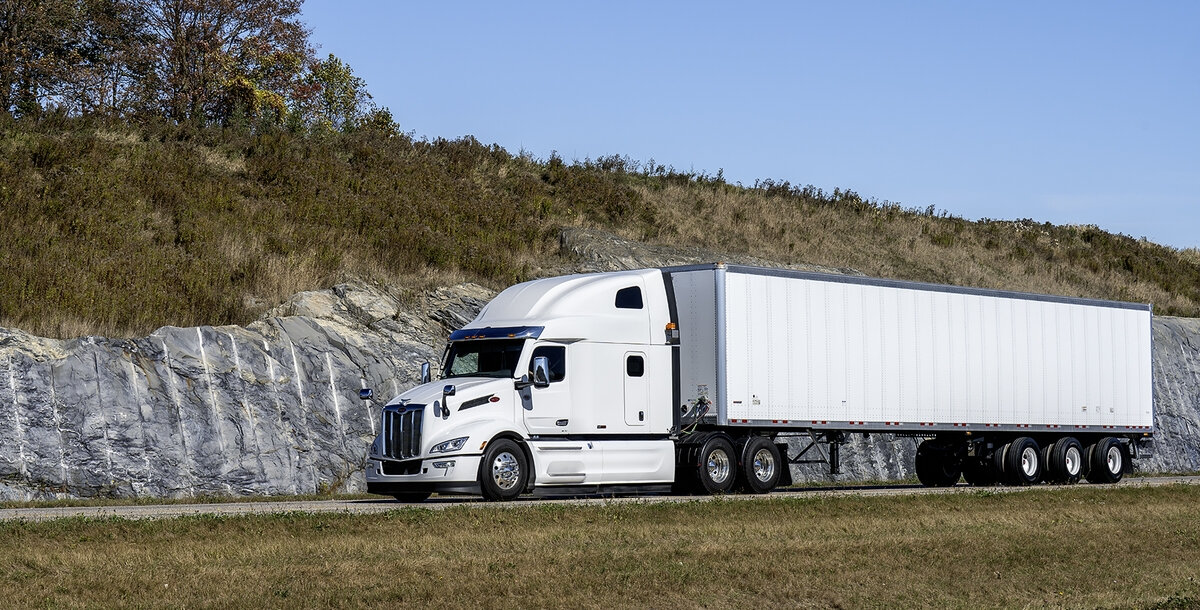

gallery
