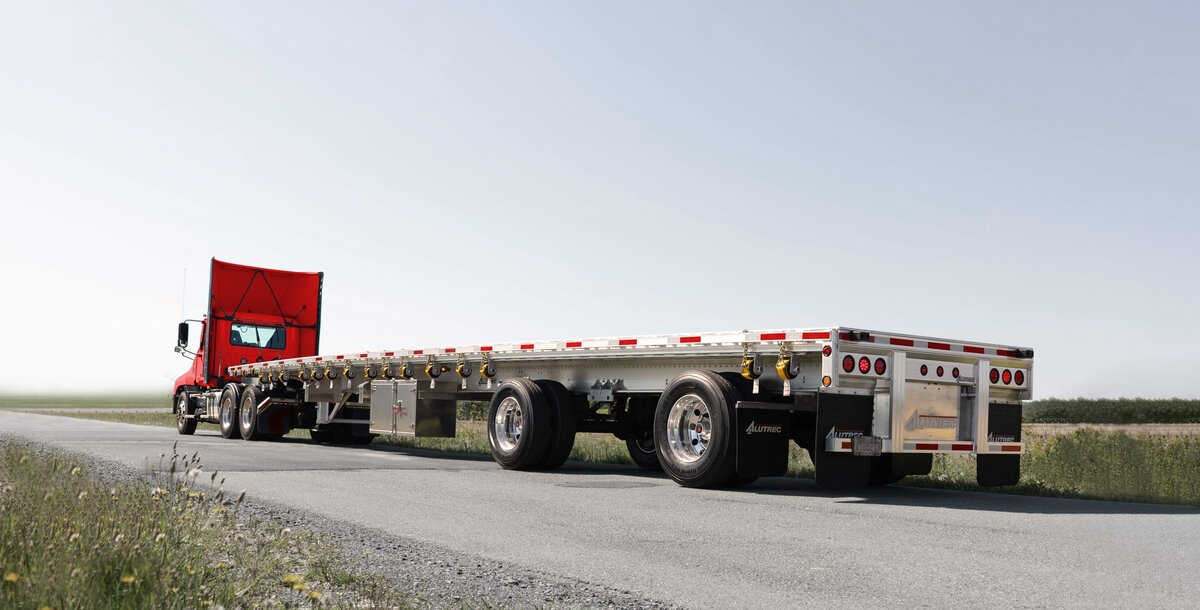

Aluminum Flatbed
Alutrec
Premium Aluminum Flatbed
Standard features
7
Years
Warranty
Aluminum landing gear Benefit: Superior strength to weight ratio for maximum revenue
Reliable rivited 2 piece mainbeam Benefit: Maintenance free design
High strength hollow core flooring Benefit: Increased impact resistance and strength
High grade 6061-T6 aluminum construction Benefit: Increased resale value
Other benefits
- Galvanized coupler plate
- Galvanized suspension hangers
- Aluminum plate with "ALUTREC" logo bolted between bumper uprights
- Integrated cargo rails at side rails
- Pre-cambered main beams
Optional features
Coil Packages
Coil packages for single and multiple coils
Log Transport Options
Bunks for lumber with posts
Toolboxes
Variety of sizes and finishes
Specifications
Dimensions
Length
28'-53'
Width
96"-102"
Body Structure
Coupler Plate
3/8" galvanized coupler plate
Web
Aluminum extrusion (6061-T6)
Flanges
Aluminum extrusion (6061-T6)
Crossmembers
4" Extruded aluminum on 12" c/c
Floor
High Strength aluminum extrusion with 3 apitong nailers
Side Rail
Aluminum extrusion with integrated cargo rail
Pockets
Aluminum tube on 24" centers with certified 5,500 lbs working load limit
Rub Rails
Aluminum extrusion with standard double pipe spools
Rear End
Aluminum extrusion with recessed tail lights for extra protection
Bumper
Bolt-on aluminum, Transport Canada and DOT certified
Landing Gear
Landing Gear
Jost AX150 aluminum 10 year limited warranty
Suspension
Suspension
Hendrickson Intraax air ride
Air System
Gladhands
Fixed at front
Accessories & Finishing
Decals
Conspicuity tape complies with DOT and CMVSS standards
