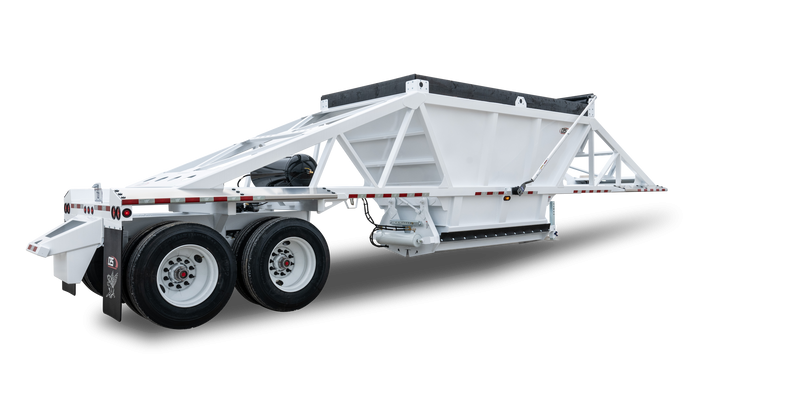

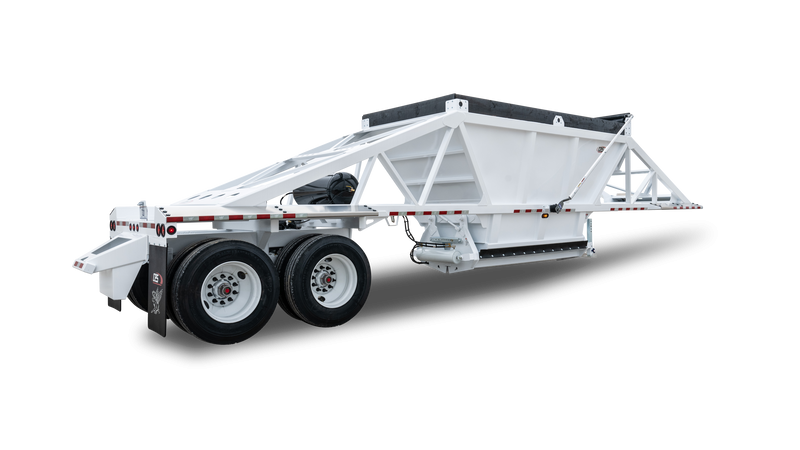

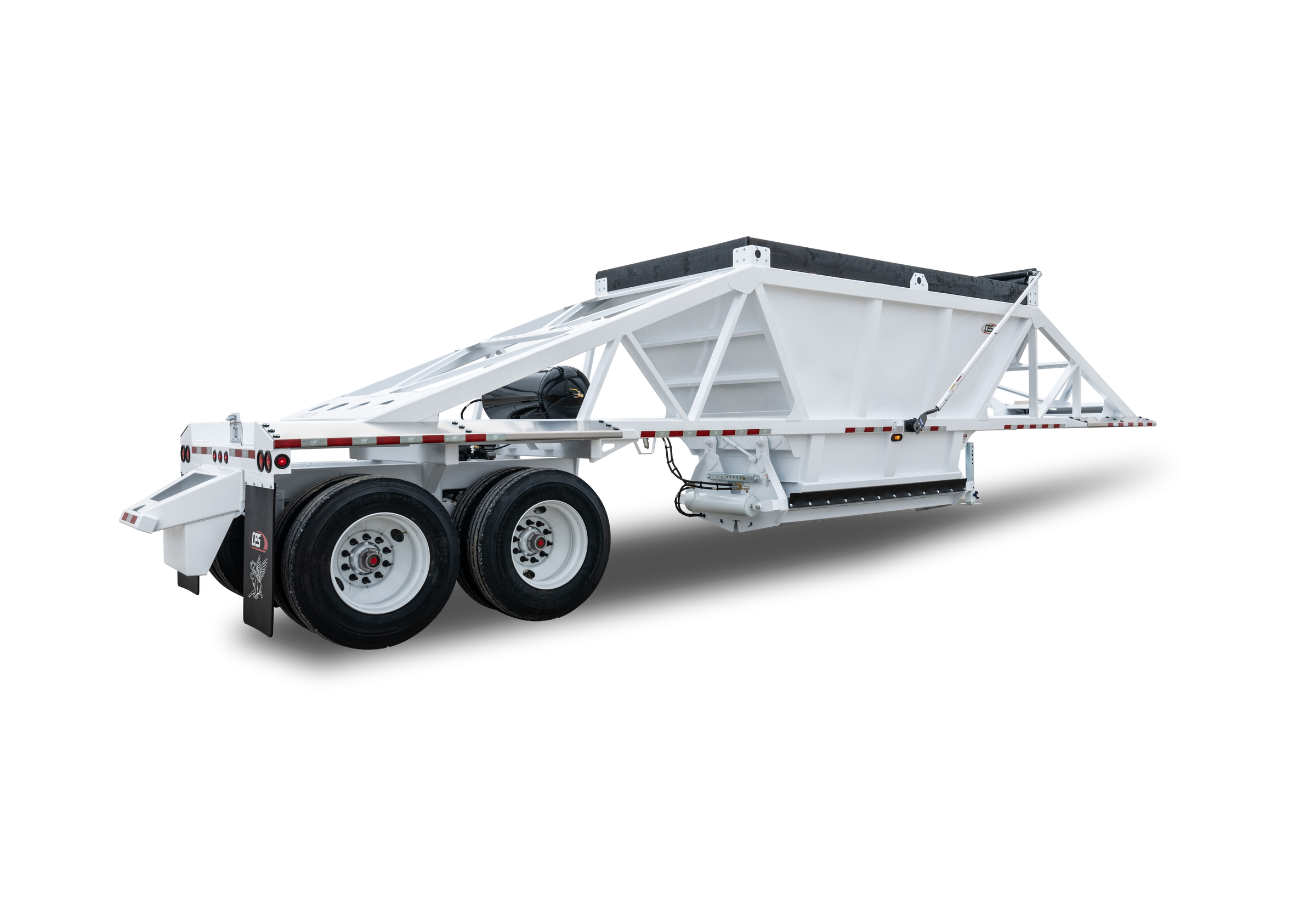

Premium Steel Lightweight Bottom Dump
Standard features
1
Year
Warranty

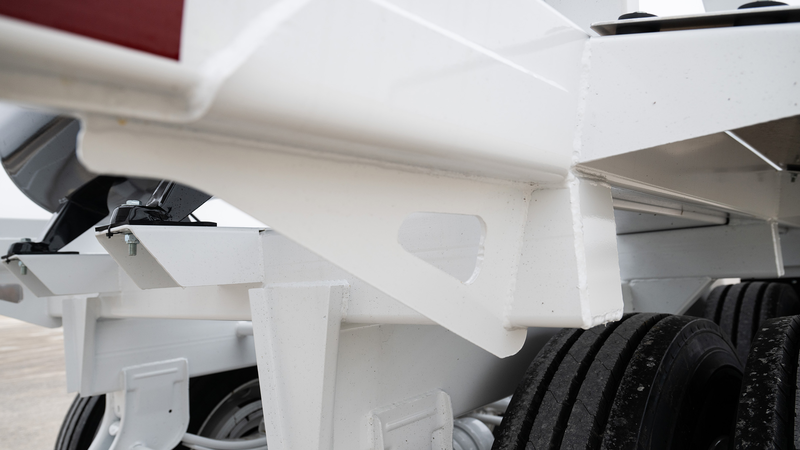

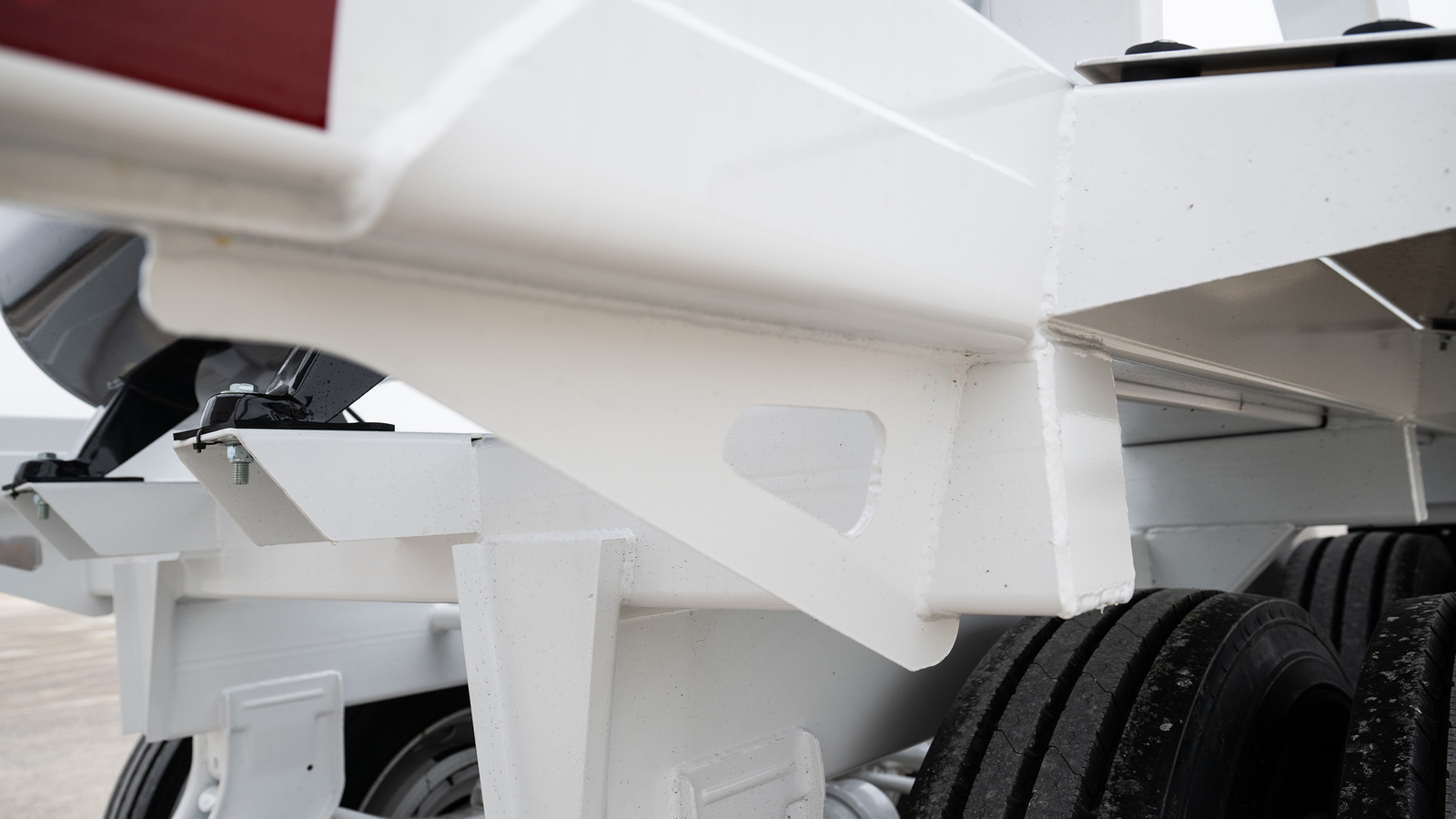

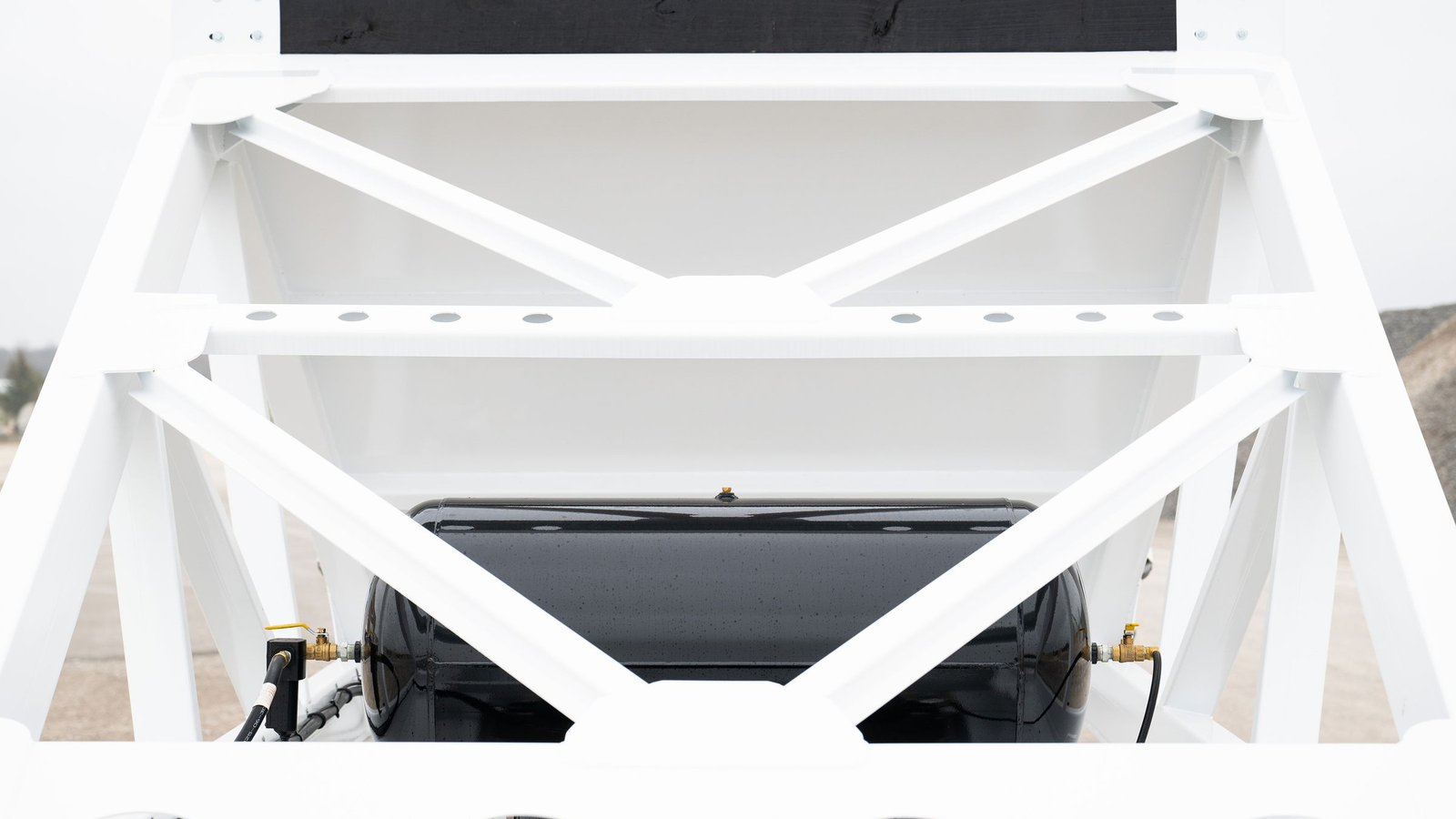

K-bracing front and rear Benefit: Increased structural integrity on rough terrain
23 cubic yard capactiy with 10" bang boards Benefit: Increased loading capacity and revenue

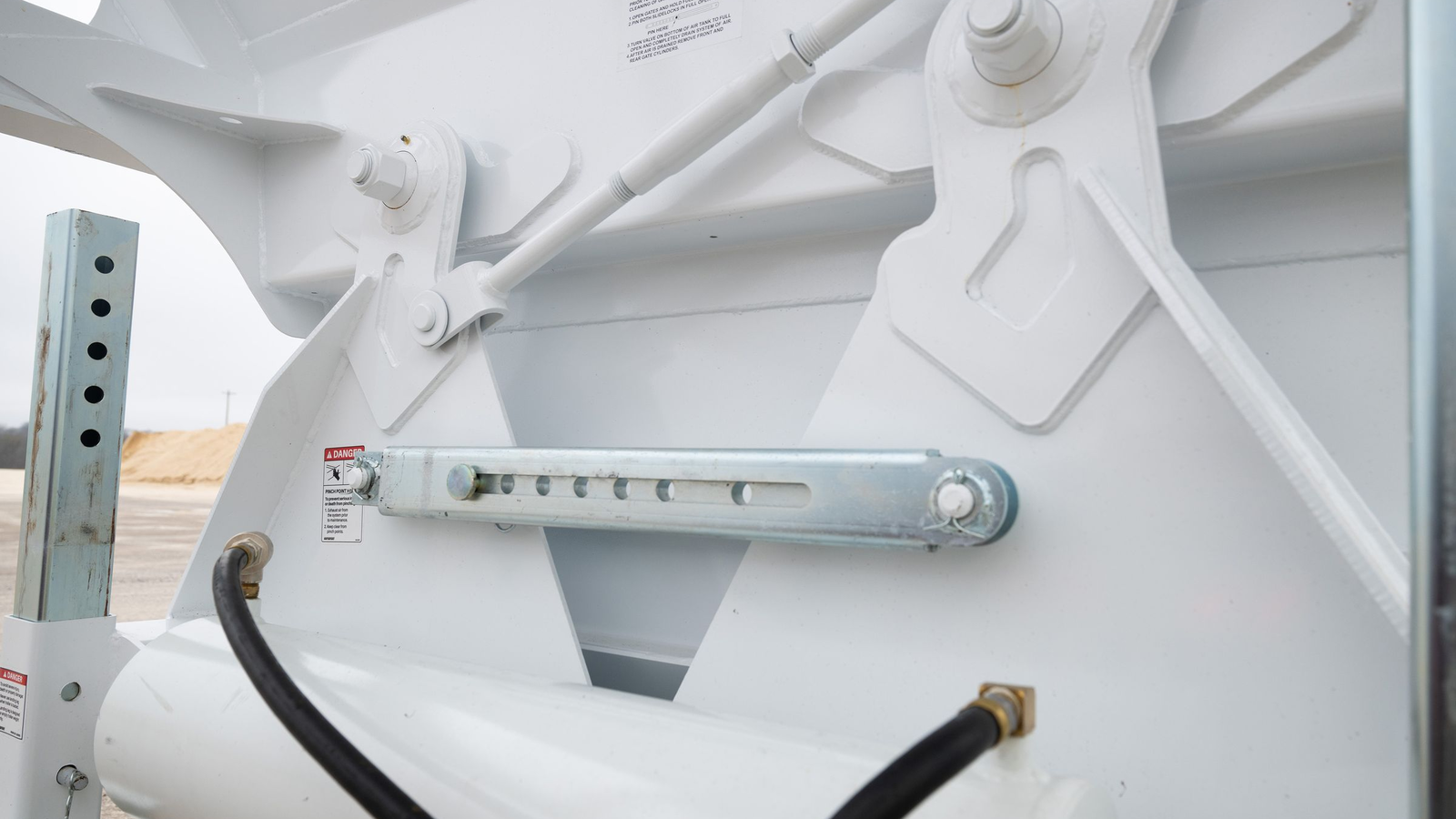

Adjustable slide locks Benefit: Greater flexibility with 6 preset openings for 8"-30"

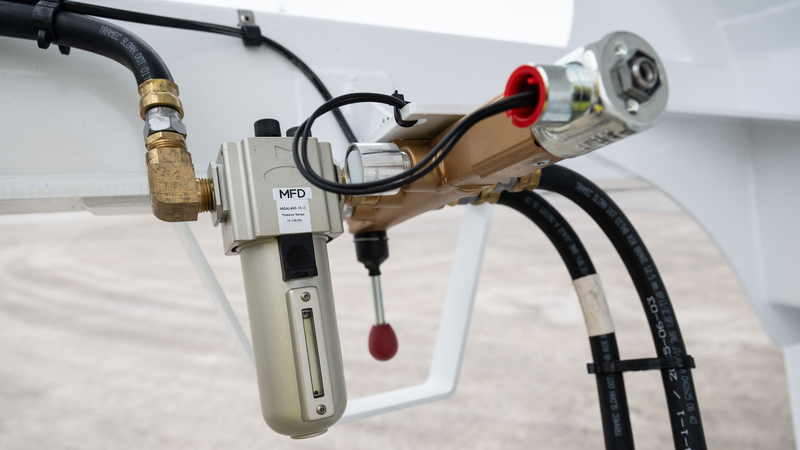

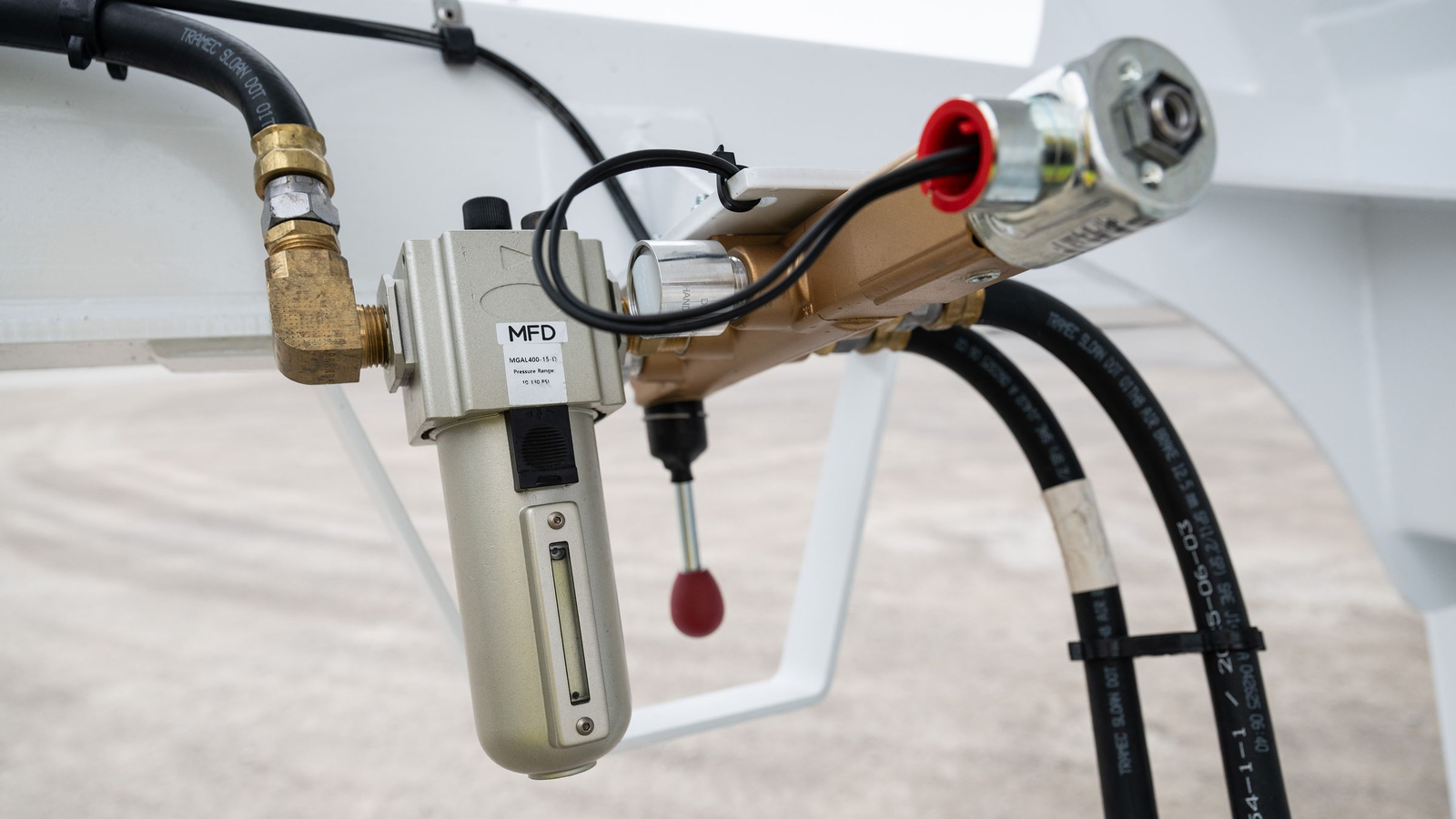

Gate control - electric over air Benefit: Can be operated from cab of tractor or manual from ground

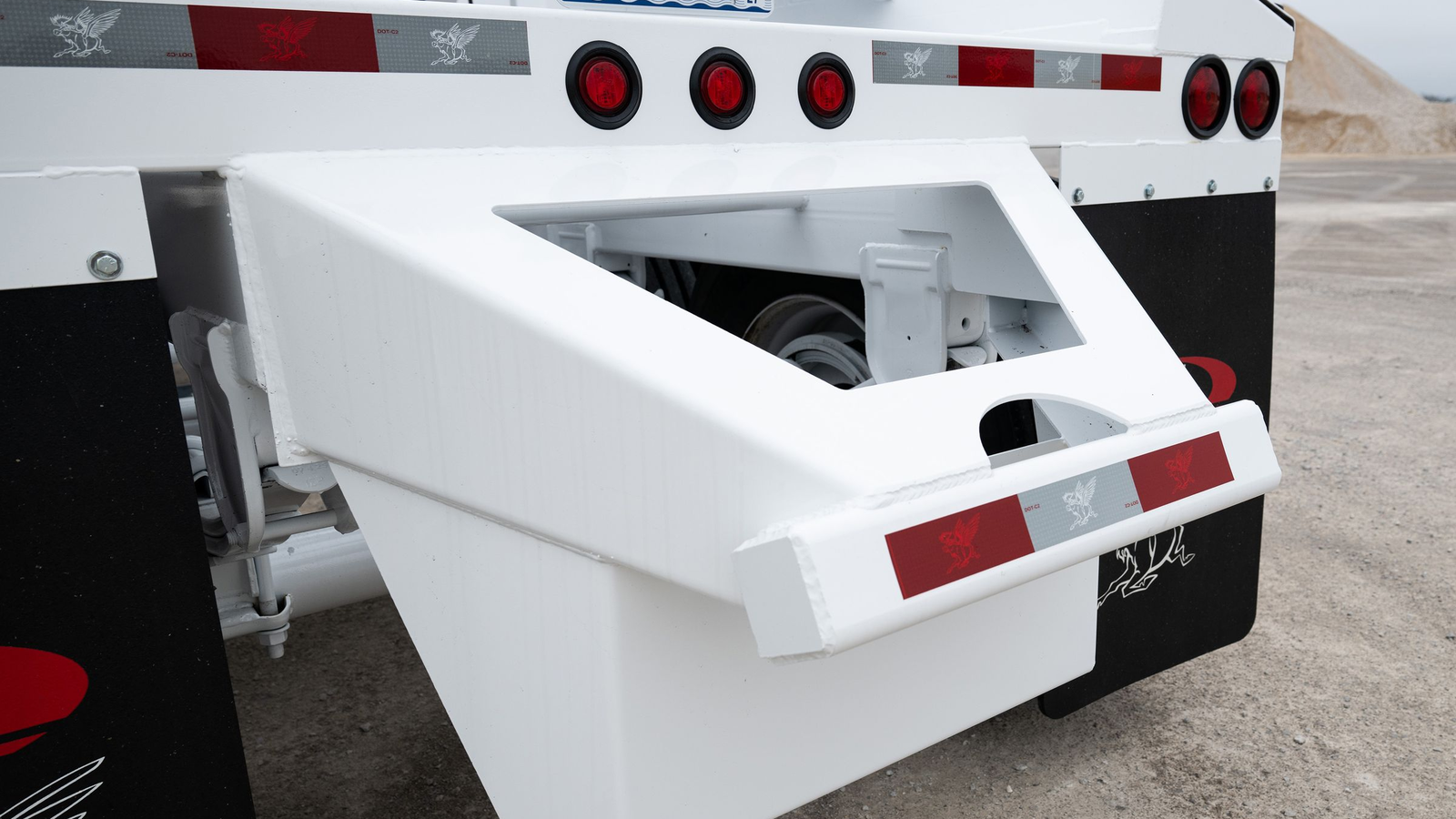

Pushblock with certified underride Benefit: Increased strength and safety
Optional features
Suspension
Tandem single point, tridem, air ride, disc brakes, aluminum rims
Tire Inflation System
TireMaax and other OE systems available
Specifications
Dimensions
Length
40'
Width
102"
King Pin
18"
Height
10' with bang boards
Capacity
23 cubic yards to top of bang boards
Body Structure
Coupler Plate
Oscillating coupler plate
Upper Hopper
10 gauge and 12 gauge steel with vertical hopper supports
Lower Hopper
10 gauge ends and 12 gauge sides with 54" x 108" opening
Bottom Rail
4" x 6" x 3/16" high strength tube
Top Rail
4" x 6" x 3/16" high strength tube
Door
3/16", 80w with rubber gate seals and slide locks
Pushblock
Welded pushblock with certified underride
Front End
High strength K-bracing
Rear End
High strength K-bracing
Fenders
Steel inner fenders at rear and aluminum outter fenders front and rear
Electrical
Main System
Grote Ultra Blue LED sealed lights & wiring harness system meets Transport Canada and DOT requirements
Front Plug
7 way (SAE J560) with easy access wirring
Lights
LED shock proof lights with polycarbonate lenses
Front Additional Plug
6 way wired for gate control
Landing Gear
Landing Gear
Drop leg/stiff 4" x 4" galvanized square tube
Suspension
Suspension
Tandem 4 spring suspension
ABS System
Wabco ABS 2S-1M
Mudflaps
Black rubber with CPS logo
Window Deflector
Galvanized steel
Air System
Air Controls
Double, air suspension and door lock cylinder operate together with electric control and individually with manual control. Includes quick exhaust valve
Accessories & Finishing
Paint
Shot blasted, one coat of epoxy primer and two acrylic polyurethane top coats
Decals
Conspicuity Tape Meets CMVSS & DOT Standards
