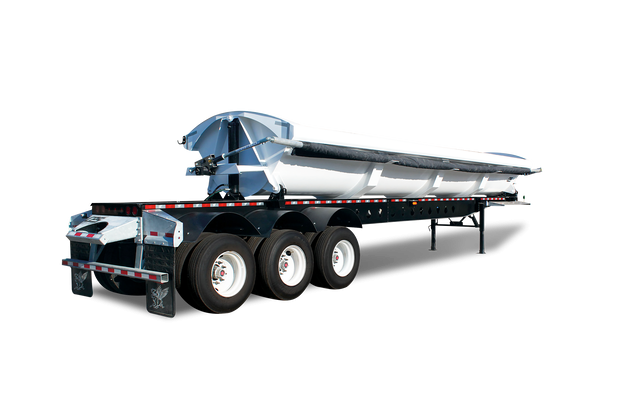

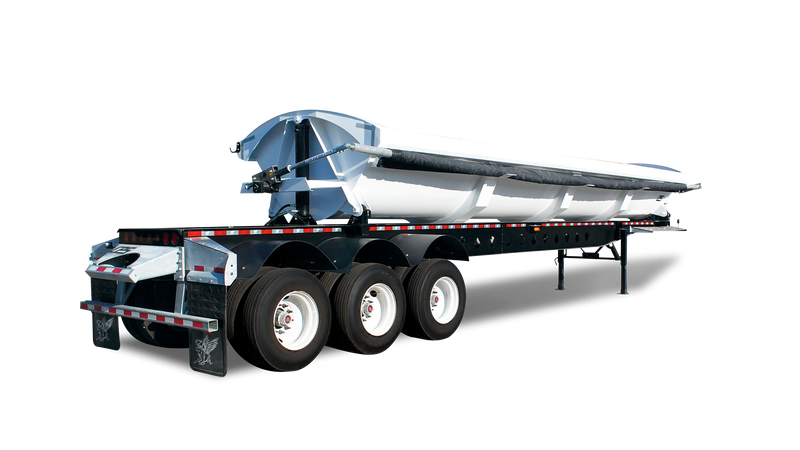

Premium Steel Side Dump
Standard features
1
Year
Warranty
Dual cylinder design with mounts/saddles welded to frame Benefit: Increased reliability and control through dump cycle
Aluminum shock mounted fenders front and rear Benefit: Reliable maintenance-free design
AR450 reinforced steel tub design Benefit: Increased impact resistance
Tub design without baffles Benefit: Material does not get hung up
Fully functional self-contained hydraulic system Benefit: Allows for controlled dumping during the complete dump cycle
Optional features
Suspension
Tridem, disc brakes, extended wheel end options, aluminum rims
Tire Inflation System
TireMaax and other OE systems available
Specifications
Dimensions
Length
40' frame, 34' tub
Width
102"
King Pin
18"
Height
99" overall height
Capacity
23 cubic yards flat and 29 cubic yards heaped
Sub Structure
Coupler Plate
5/16" thick steel
Crossmembers
Steel fabricated torque tube design
Flanges
3/8" x 4" top and bottom flanges
Web
80w steel, 1/4" in gooseneck and the remainder in 3/16"
Bumper
4" x 3" x 3/16", 50k tube with integrated tow hooks
Frame
40' overall length, 20" deep fabricated beam assembly with integrated "torque tube" stiffeners. Fenders integrated front and rear
Front Wall
Front Wall
3/16" AR450 reinforced bulkhead
Front Corners
Reinforced
Cylinder
5" diamater hydraulic cylinders front and rear
Side wall
Side Panels
1/4" AR450 steel
Top Rail
1/4" formed 80ksi steel
Rear End
\{manac-rear-wall}
3/16" AR450 with reinforced corners
Electrical
Main System
Grote Ultra Blue LED sealed lights & wiring harness system meets Transport Canada and DOT requirements
Landing Gear
Landing Gear
2 speed
Suspension
Suspension
Hendrickson HT-230 tandem air ride
ABS System
Wabco ABS 2S-1M
Mudflaps
Black rubber, 36" with CPS logo
Air System
Air Controls
Fully operational self contained hydraulic system. Main system allows operator to adjust dump and return speeds. Secondary control adjusts flow of oil to front and rear cylinders
Accessories & Finishing
Paint
Shot blasted, one coat of epoxy primer and two acrylic polyurethane top coats
Decals
Conspicuity Tape Meets CMVSS & DOT Standards
Tarp
Factory installed options available

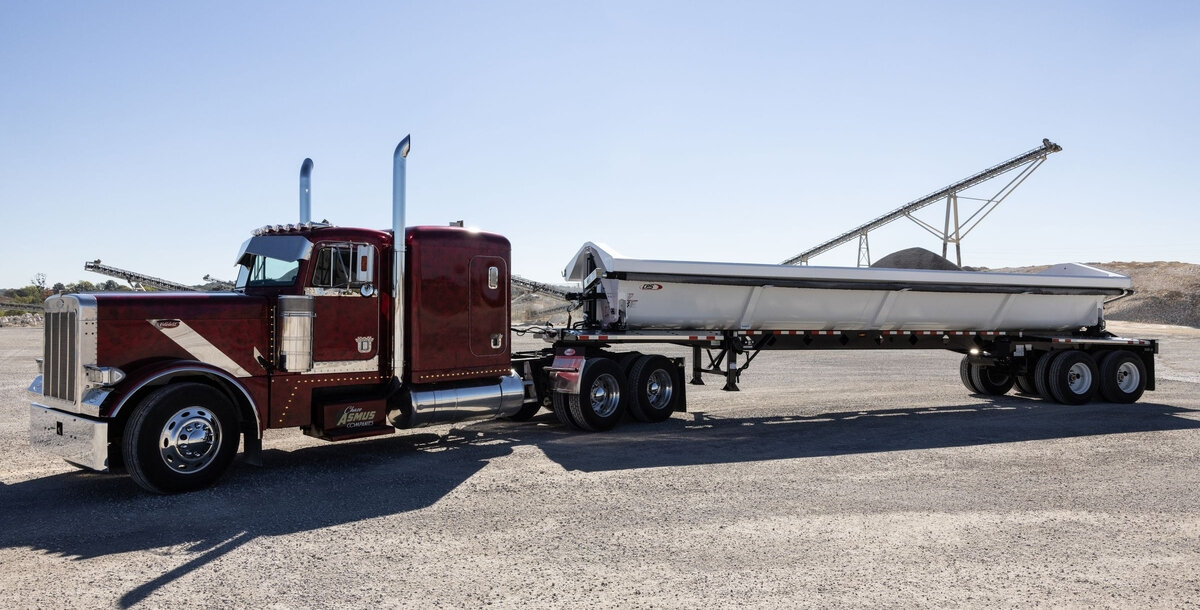

gallery
