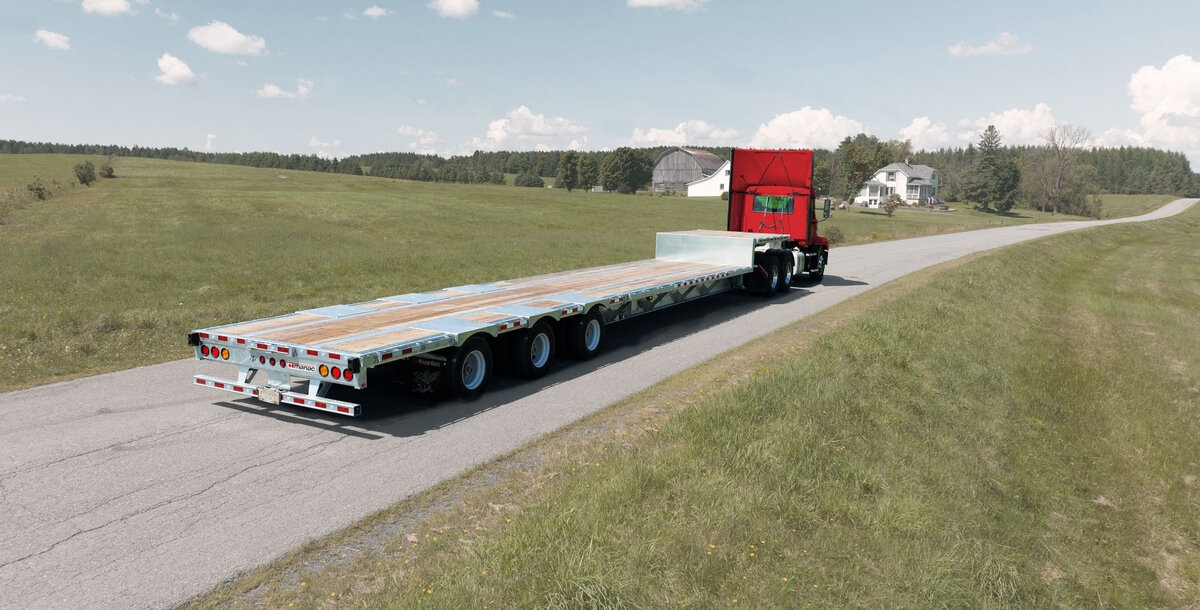

Durable Steel Extendable Drop Deck
Standard features
7
Years
Warranty
Other benefits
- 9 gauge formed steel ront sill with light protection
- Heavy-duty landing gear structure
- Pre-cambered main beams
- High-tensile steel side rails with solid rub rails spacers
- Floor and wiring (air and electrical) installed after paint process
- 11" high rear sill with 3 integrated pockets
Optional features
Straps and Winches
Cargo securement options fixed and sliding winches and various straps
Toolboxes
Variety of sizes and finishes
Headboard
Variety of sizes and finishes
Specifications
Dimensions
Length
48' to 65' open or 53' to 72' open
Width
96"-102"
Drop Height
20" located at 10'-6" from front
Openings
5'-0" increments in closed position
Body Structure
Coupler Plate
5/16" steel plug welded structure
Web
1/4" plate in king pin area and the remaining in 3/16"
80 000 psi steel. 24" high outside frame and 17 5/8" high on interior
Flanges
Outside frame 3/8" x 6", 100 000 psi steel. Inside frame 3/4" x 6", 60 000 psi steel
Crossmembers
I beams, 4" @ 3.64 lbs/ft, 80 000 psi steel, 16" c/c in gooseneck and the remaining at 12" c/c
Floor
Apitong or equivalent, 1 1/8" thick shiplap finished, no preservative
Side Rail
Formed channel 6" @ 4.6 lbs/ft.
Pockets
3/16" steel plate, 1 5/8" x 3 5/8" interior, 4" high
Rub Rails
3/8" x 2 1/2" shaped steel
Knee Braces
2" x 2" x 3/16" angles, welded in web and to a crossmember, 4 located each side
Rear End
11" high, 9 gauge formed steel, including 3 boxes at rear and 3/8" x 2 1/2" shaped steel.
Bumper
CMVSS 223-RIG approved (in accordance with Canada & USA regulations). Uprights integrated with frames, 4" x 4" cross bar roll formed tubing
Fenders
Over tires at rear, checker plate 1/8"
Locks
Air operated with a third glad hand at front
Rollers
4 total, 2 on outside sections of frame and 2 on interior sections
Electrical
Main System
Grote Ultra Blue LED sealed lights & wiring harness system, meets Transport Canada and DOT requirements
Landing Gear
Landing Gear
Holland with reinforced structure
Suspension
Suspension
Hendrickson HT or Intraax air ride
Air System
Air Controls
3rd glad hand at front for easy opening and closing of exentable flatbed
Gladhands
Fixed at front
Accessories & Finishing
Paint
Shot blasted, one coat of epoxy primer and two polyurethane acrylic top coats
Decals
Conspicuity tape complies with DOT and CMVSS standards
