Efficient 35 Ton Extendable Mechanical Lowbed
Durable 60 Ton Lowbed
Standard features
Other benefits
- 4 beam design
- Extendable lights adjustable to load width
Optional features
Outriggers
Galvanized, 24 fabricated, 12 each side, 9" wide, including 4 boards of 6 1/2" wide x 1 5/16" thick, with storage in center
Flip-Up Axle
Removable flip up axle
Flip up neck extension
Removeable flip up neck extension
Specifications
Dimensions
Length
53', main deck 26'-1" mid section
Width
102" side rail to side rail
Deck Height
Main deck, 8" under center beams, 24" above ground
Coupler Height
50"
King Pin
16"
Body Structure
Coupler Plate
5/16" plug welded structure, 100 000 psi steel

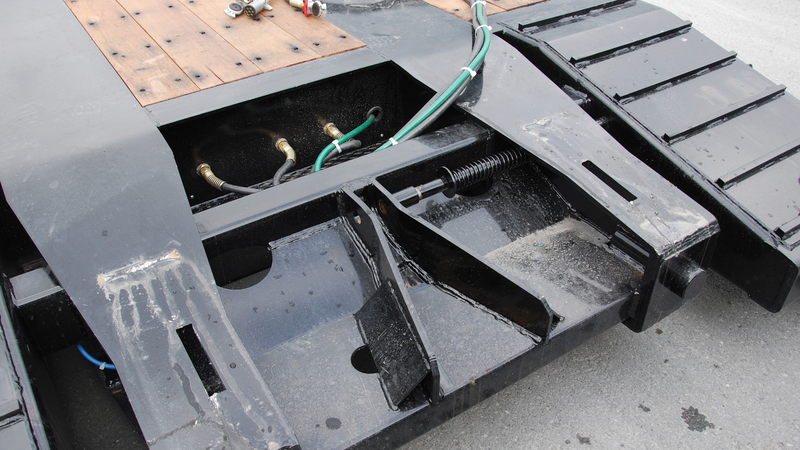

Gooseneck
Taper beam, 84" clear behind king pin. Detachable with 2 hydraulic vertical cylinders, 9" diameter with hydraulic operated gooseneck locks
Web
5/16" full length, 100 000 psi steel
Flanges
Main beams 3/4" x 9", 16" high, 100,000 psi steel
Crossmembers
Fabricated "H" beams, 10" @ 15 lbs/ft, 28" c/c
Floor
Oak 2 1/4" thick, covered with one coat of linseed oil, 1/2" over the frame on the side, no floor between main frame
Side Rail
Fabricated H-beams, 3/4" x 4" x 15" high, web 1/4", 100 000 psi steel
Outriggers
24 fabricated, 12 each side, 9" wide including (4) 8" wide x 2 1/4" thick x 12' long boards with storage in center
Rear Beams
Qty 4, 102" wide, located between tires, 17" wide, 10 000 lbs capacity each, including lashing ring each end
Front End
Formed steel, between two main beams, including two pin up joints with bushings for gooseneck extension

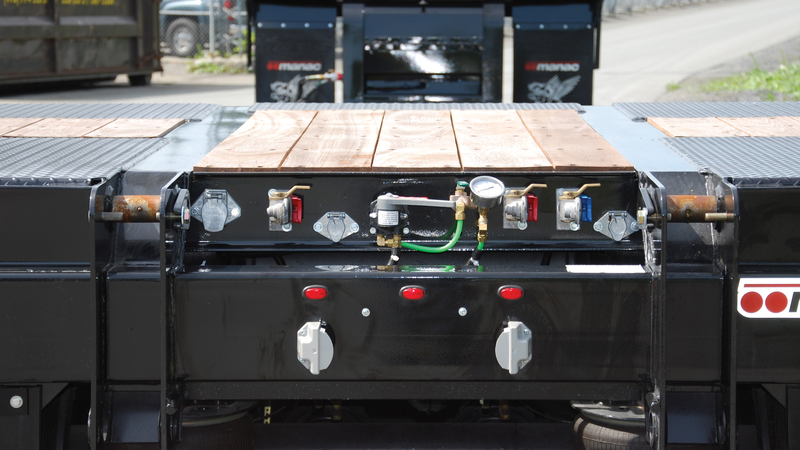

Hydraulic Coupling
1 male pressure and 1 female return, quick coupling, 1" diameter located curb side
Bumper
Steel formed model, including supports and flag, wide load sign support and warning strobe lamp support near 4-way rear connector and connecting plate with bushing for a flip-up axle
Fenders
For front, protection only, 102" wide, 1/8" anti-skid steel welded to the gooseneck with two sets of mudflaps located on front rail and at rear. Incuding supports and flags
Electrical
Main System
Grote Ultra Blue LED sealed lights & wiring harness system meets Transport Canada and DOT requirements
Landing Gear
Stinger
One leg fabricated and activated with 4" diameter cylinder resting on truck frame
Suspension
Suspension
Fixed, Hendrickson (1) HT-300YB-9 and (2) HT-300US-9
ABS System
Wabco ABS 2S-1M
Air System
Air Controls
Manually adjustable ride height mechanism with manual blow down vale with pressure gauge
Gladhands
Fixed at front and In basket at front deck including hoses and on rear bumper for flip-up axle option
Accessories & Finishing
Paint
Shot blasted, one coat of epoxy primer and two acrylic polyurethane top coats
Decals
Conspicuity tape complies with DOT and CMVSS standards
Lashing Rings
22 heavy-duty D-rings, 9 bent style each side of main deck and 2 on gooseneck
Storage Box
1 between two beams of the gooseneck
Flags
6 flag holders, 4 on extendable lights and 2 on rear bumper, flags included
Sign
One "D" long wide road sign red and white, removeable, 12" x 96" in aluminum
