Robust Sloped Log Trailer

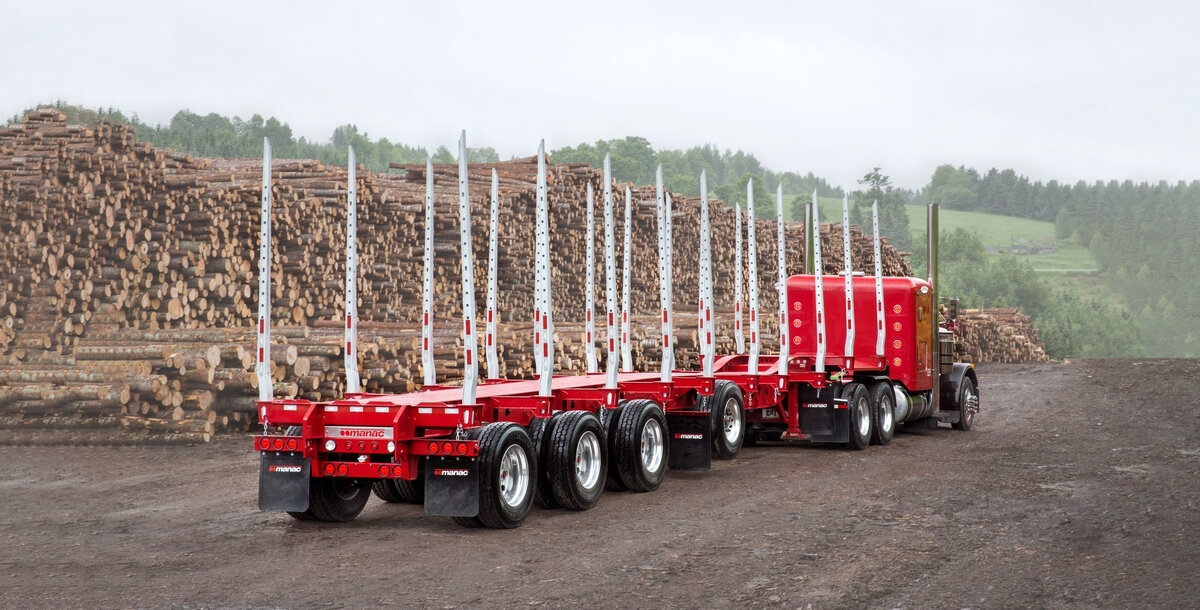

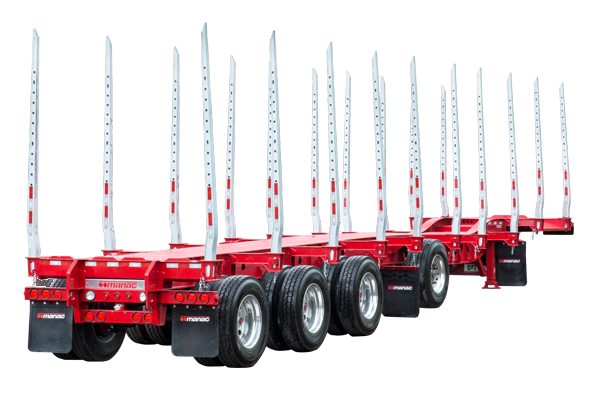

Robust Drop Log Trailer
Standard features
Other benefits
- Heavy duty pull plate on bumper
- Additional lights in rear end bumper
- Bolted king pin
- Reflective tape on both sides of pickets
- Bunk angles installed on last bunk to hold tree length lumber
- Gravel guard installed above suspension hangers
Optional features
Suspension
Manac high lift suspension, Disc Brakes, Extended Wheel End Options, Aluminum Rims
Headboard
Optional 96" high removeable headboard
Log Loader
Structure ready to receive log loader
Specifications
Dimensions
Length
42'-53'
Width
102"
Deck Height
61" at front and 51" at rear
Coupler Height
50"
King Pin
Bolted at 30"-42"
Drop Height
10"
Height
13'-6"
Body Structure
Coupler Plate
3/8" plug welded reinforced structure
Gooseneck
10" high, with integrated nose ramp and 48" straight behind king pin. Curved shape at drop section
Web
1/4" plate in king pin area and the remaining in 3/16",
80 000 psi steel with parachute shaped holes to lighten trailer
Flanges
3/8" x 7", 100 000 psi steel top flanges and 1/2" x 6", 100 000 psid bottom flanges
Crossmembers
4" I beams 80 000 psi steel, between main beams
Floor
Checker plate 1/8" between main beams, full length (no wood flooring at all)
Front End
3/16" thick formed plate, 80 000 psi steel with glad hand protectors
Bumper
Forestry type, tubing with integated push & pull plates installed on bumper uprights
Fenders
Checker plate 1/8", above truck wheels, sloping and smooth steel at front of first bunk
Bunks
5 fixed sets of bunks with fabricated boxes (double boxes at rear) Located 72" c/c
Stakes
Qty: 20, ultra light, galvanized, bottom 4" x 4", curved, 80,000 & 100,000 psi steel
Electrical
Main System
Grote Ultra Blue LED sealed lights & wiring harness system meets Transport Canada and DOT requirements
Lights
LED shock proof lights with polycarbonate lenses with a total of 10 rear tail lights
Suspension
Suspension
Hendrickson HT
Retaining Chains
On ground axles with air ride suspension
ABS System
Wabco ABS 2S-1M
Air System
Gladhands
Fixed at front
Accessories & Finishing
Paint
Shot blasted, one coat of epoxy primer and two polyurethane acrylic top coats with gravel guard applied to the suspension hangers
Decals
Conspicuity tape complies with DOT and CMVSS standards
Winches
10 total 2 fixed and recessed on road side between first set. 8, fixed and tilted 45 degrees, located road side between bunks all with handles
Lashing Rings
Qty: 10, lashing pockets on the opposite side of winches
